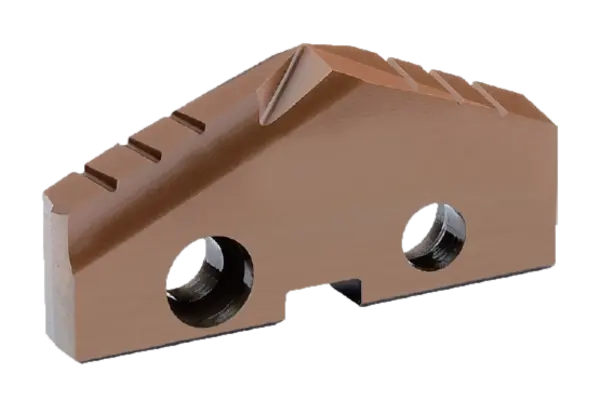

WebCategoryImage Phantom UNI HSS-E PM Drilling insert AlCrN Gr.00 13‚0mm
Drawing Phantom UNI HSS-E PM Drilling insert AlCrN Gr.00 13‚0mm
WebCategoryImage

Phantom UNI HSS-E PM Drilling insert AlCrN

75650
WebCategoryImage Phantom UNI HSS-E PM Drilling insert AlCrN Gr.00 13‚0mm
Drawing Phantom UNI HSS-E PM Drilling insert AlCrN Gr.00 13‚0mm
WebCategoryImage

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
40-80C
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
35-70C
Very adequate for Alloyed steel 850 - 1000 N/mm²
30-50B
Adequate for Alloyed steel 1000 - 1400 N/mm²
20-35B
Very adequate for Stainless steel, ≤850 N/mm²
18-32A
Very adequate for Stainless steel, >850 N/mm²
15-25A
Very adequate for Grey cast iron GG HB<260
40-70C
Very adequate for Nodular and malleable cast iron HB<260
30-60C
Adequate for Aluminium and Aluminium alloys
100-200B
Adequate for Cast Aluminium Si 10 - 24%
100-150C
Adequate for Magnesium alloys
60-80C
Adequate for Copper and copper alloys
40-50C
Adequate for Copper and Aluminium alloys
50-75B
Adequate for Duroplastics en Thermoplastics
50-90C
Adequate for Reinforced plastics
50-90C
Adequate for Nikkel and Cobalt alloys
8-12A
Adequate for Titanium alloys
10-14A
  • choose drill diameter (d1)
  • choose type of insert (type)
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

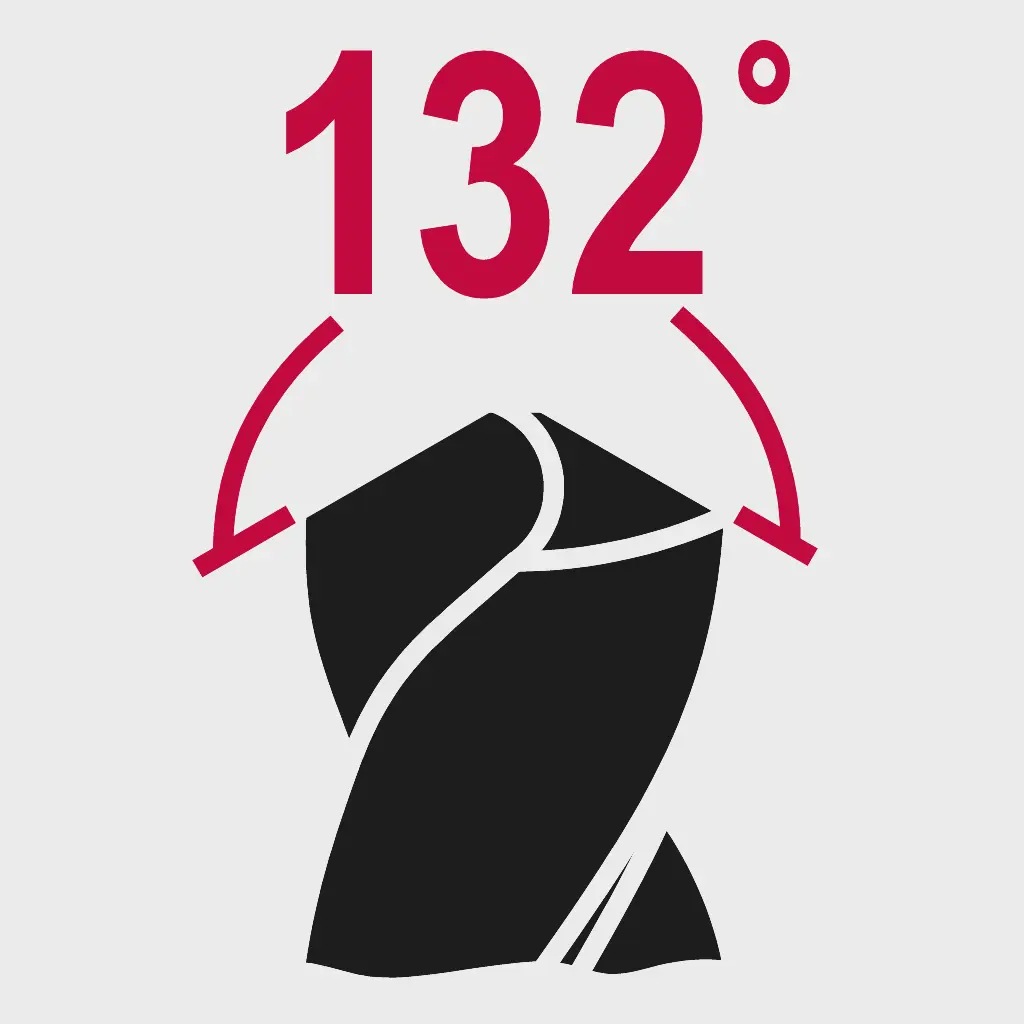

Point angle
132°
Tool material
HSS-E PM
Surface
AlCrN
