Phantom HP2 UNI solid carbide Vari Flute End Mill 2xD/3xD AlCrN 4x8x12mm

343140400
WebCategoryImage Phantom HP2 UNI solid carbide Vari Flute End Mill 2xD/3xD AlCrN 4x8x12mm
Drawing Phantom HP2 UNI solid carbide Vari Flute End Mill 2xD/3xD AlCrN 4x8x12mm
YouTubeId Phantom HP2 UNI solid carbide Vari Flute End Mill 2xD/3xD AlCrN 4x8x12mm
WebCategoryImage
€43.10

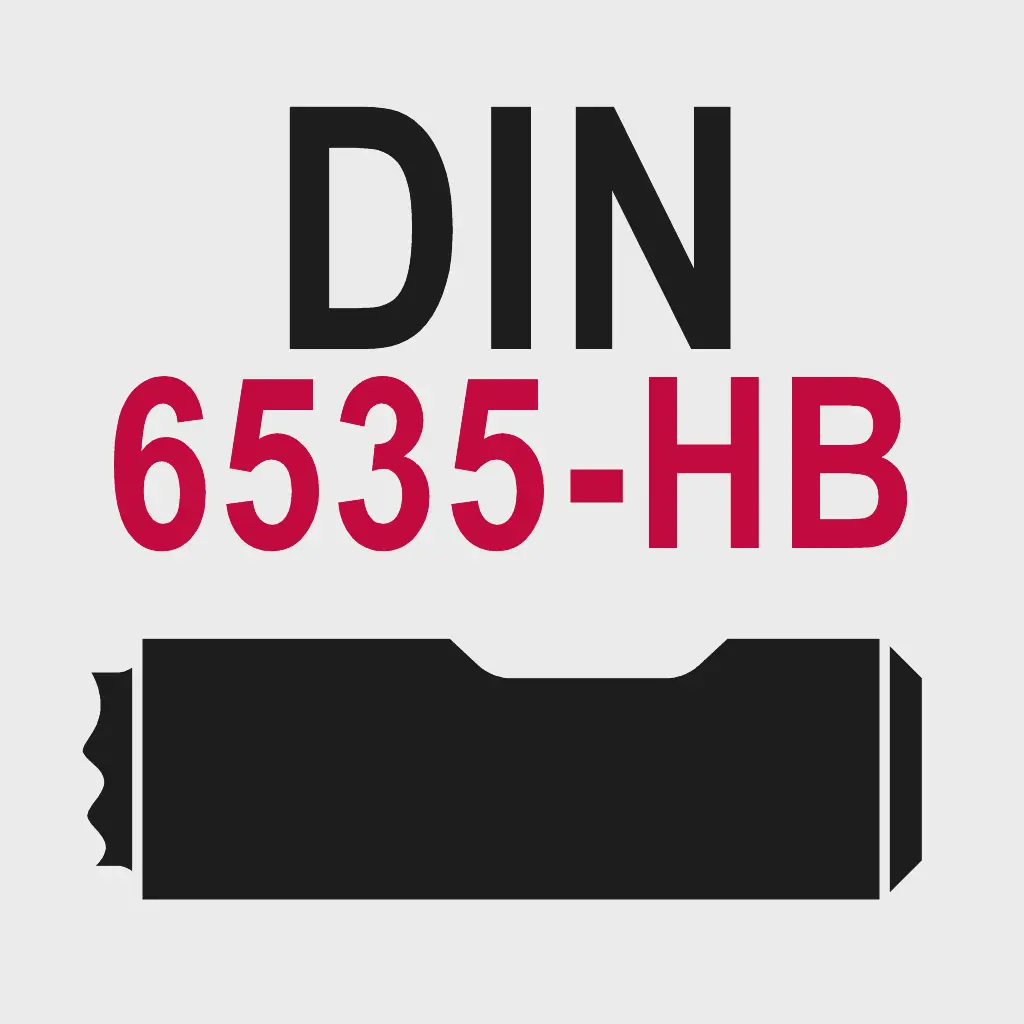

Weldon shank (DIN 6535-HB)

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
180-240L
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
160-220L
Very adequate for Alloyed steel 850 - 1000 N/mm²
150-200K
Very adequate for Alloyed steel 1000 - 1400 N/mm²
100-140K
Very adequate for Stainless steel, ≤850 N/mm²
80-140I
Very adequate for Stainless steel, >850 N/mm²
60-120H
Very adequate for Grey cast iron GG HB<260
120-180J
Very adequate for Nodular and malleable cast iron HB<260
80-130J
Very adequate for Nikkel and Cobalt alloys
40-60J
Very adequate for Titanium alloys
60-80I
