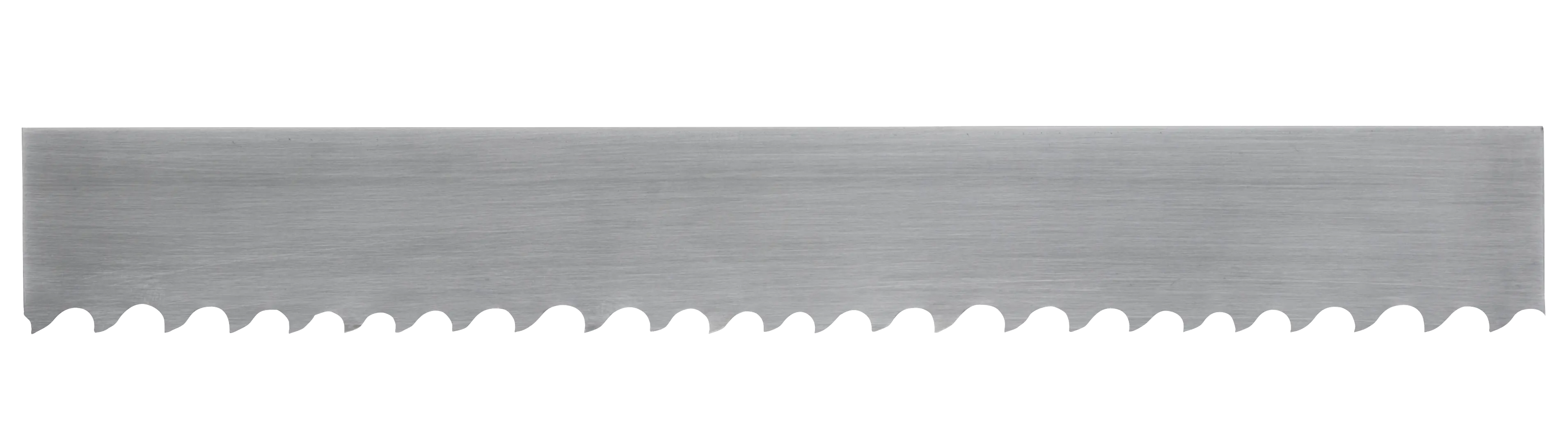

WebCategoryImage Phantom M42 Bi-Metal Band saw universal multi-saw 41x1‚3 4/6 TPI 5335 mm
WebCategoryImage
No longer available

Phantom M42 Bi-Metal Band saw universal multi-saw 41x1‚3 4/6 TPI 5335 mm

66455655335
WebCategoryImage Phantom M42 Bi-Metal Band saw universal multi-saw 41x1‚3 4/6 TPI 5335 mm
WebCategoryImage

variable tooth pitch, 5º slightly positive rake angle, variable group set.

Band saws are made to order by us the next working day. PLEASE NOTE! This product is discontinued.

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
50-120
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
35-50
Very adequate for Alloyed steel 850 - 1000 N/mm²
30-45
Adequate for Alloyed steel 1000 - 1400 N/mm²
30-40
Very adequate for Stainless steel, ≤850 N/mm²
30-40
Adequate for Stainless steel, >850 N/mm²
10-30
Very adequate for Grey cast iron GG HB<260
30-60
Adequate for Nodular and malleable cast iron HB<260
30-60
Adequate for Aluminium and Aluminium alloys
80-800
Very adequate for Copper and copper alloys
50-400
Adequate for Nikkel and Cobalt alloys
10-25
Adequate for Titanium alloys
10-20
