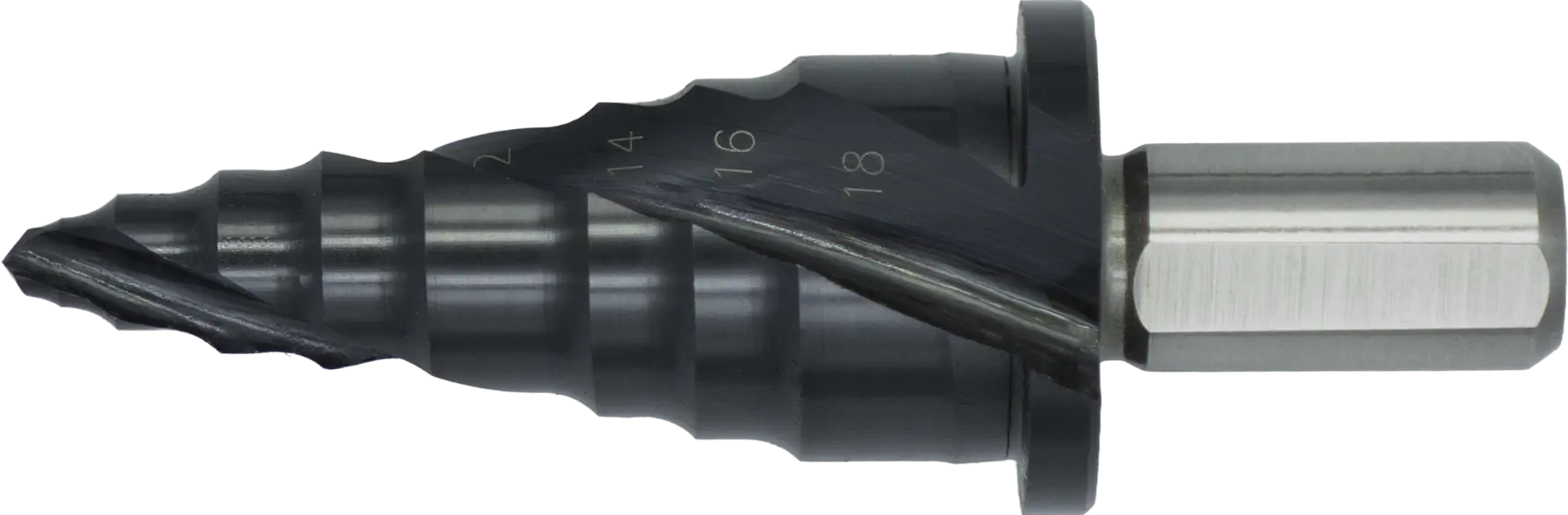

WebCategoryImage Phantom HSS multi diameter Step Drill‚ Ergo-Step for guardrail assembly‚ with spiral flute‚ TiAlN 6-18 mm
New

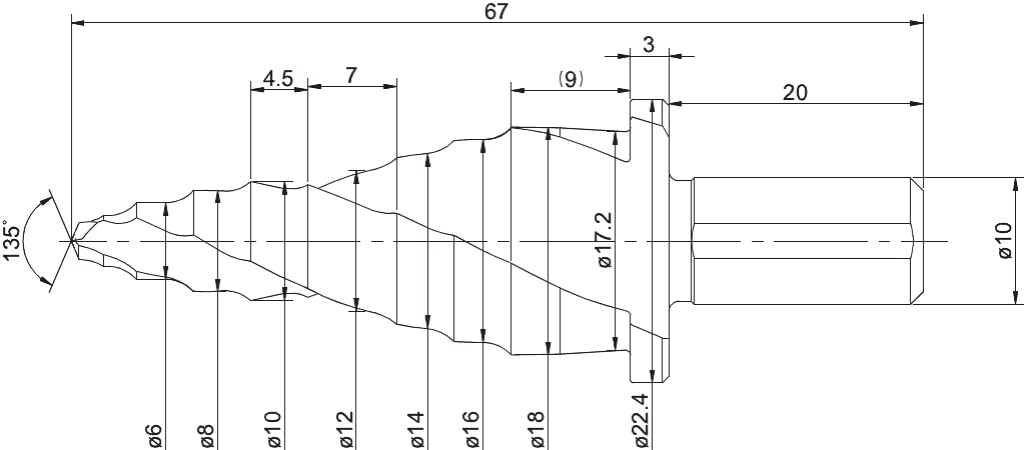

Drawing Phantom HSS multi diameter Step Drill‚ Ergo-Step for guardrail assembly‚ with spiral flute‚ TiAlN 6-18 mm
YouTubeId Phantom HSS multi diameter Step Drill‚ Ergo-Step for guardrail assembly‚ with spiral flute‚ TiAlN 6-18 mm
New
WebCategoryImage
YouTubeId Phantom HSS multi diameter Step Drill‚ Ergo-Step for guardrail assembly‚ with spiral flute‚ TiAlN 6-18 mm
In stock | 47 pieces

Phantom HSS multi diameter Step Drill‚ Ergo-Step for guardrail assembly‚ with spiral flute‚ TiAlN 6-18 mm

441460618
WebCategoryImage Phantom HSS multi diameter Step Drill‚ Ergo-Step for guardrail assembly‚ with spiral flute‚ TiAlN 6-18 mm
Drawing Phantom HSS multi diameter Step Drill‚ Ergo-Step for guardrail assembly‚ with spiral flute‚ TiAlN 6-18 mm
YouTubeId Phantom HSS multi diameter Step Drill‚ Ergo-Step for guardrail assembly‚ with spiral flute‚ TiAlN 6-18 mm
WebCategoryImage
YouTubeId Phantom HSS multi diameter Step Drill‚ Ergo-Step for guardrail assembly‚ with spiral flute‚ TiAlN 6-18 mm
€104.95

with 3 flat surfaces

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
25-27
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
22-30
Very adequate for Alloyed steel 850 - 1000 N/mm²
15-20
Very adequate for Stainless steel, ≤850 N/mm²
8-12
Adequate for Stainless steel, >850 N/mm²
5-8
Adequate for Grey cast iron GG HB<260
15-20
Adequate for Nodular and malleable cast iron HB<260
25-30
Adequate for Cast Aluminium Si 10 - 24%
45-50
Adequate for Copper and copper alloys
25-40
Adequate for Duroplastics en Thermoplastics
22-28

Filter to Your Perfect Variant

Select filters to quickly find the right variant.

  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Documents
