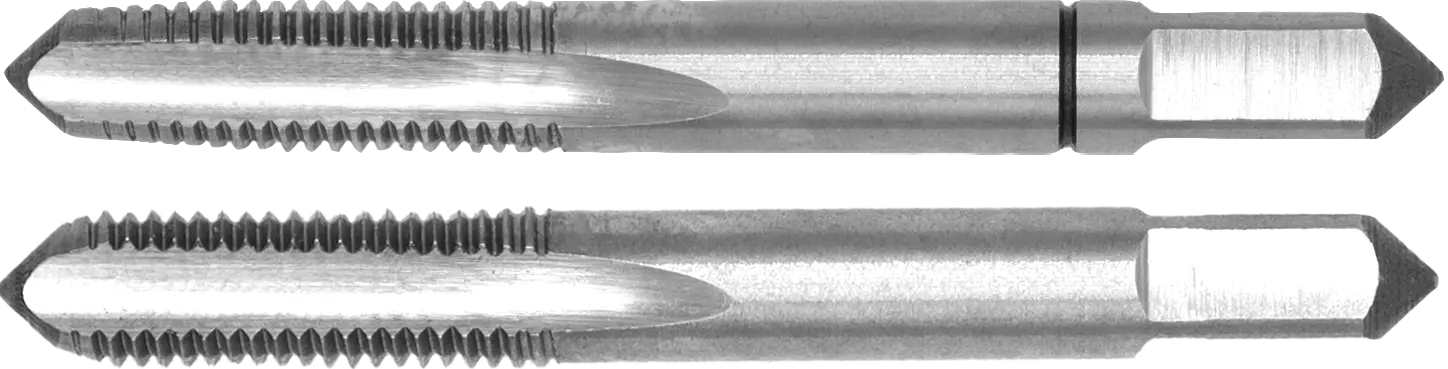

International Tools ECO HSS Hand Taps DIN 2181 UNF‚ set of 2 pieces 1/4″-28

213650635
WebCategoryImage
Drawing
€10.00

DIN 2181, in plastic case.

LET OP! Dit is een nieuw product en alleen zichtbaar voor intern gebruik.

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
Adequate for Alloyed steel 850 - 1000 N/mm²
Adequate for Stainless steel, ≤850 N/mm²
Adequate for Grey cast iron GG HB<260
Adequate for Nodular and malleable cast iron HB<260
Very adequate for Aluminium and Aluminium alloys
Adequate for Copper and copper alloys
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Thread diameter (d1)
UNF 1/4
Pitch-Inch (TPI)
28 Threads per inch
Total length (l1)
50 mm
Flute length (l2)
18 mm
Shank Ø (d2)
6 mm
Square wide (sw)
4.9 mm
Shank type
Straight shank with square
Pre-drilling diameter (Ø)
5.5 mm
Norm
DIN 2181
Tool material
HSS
Surface
Bright
Cutting direction
Right
Tolerance d1 (Tol. d1)
2B
Quality
ECO
Intrastat (HS) code
82074010
EAN code
8716563810896
