Phantom HSS Machine Tap ISO 529 G (BSP) | Phantom.eu

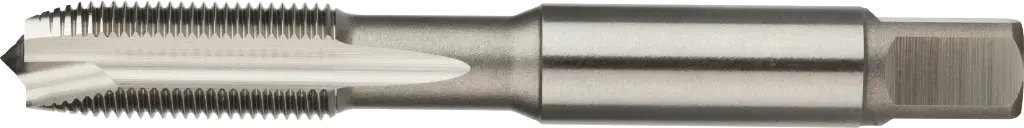

WebExtraImage Phantom HSS Machine Tap ISO 529 for through holes G (BSP) 1/8″-28

Drawing Phantom HSS Machine Tap ISO 529 for through holes G (BSP) 1/8″-28

Well in stock

Phantom HSS Machine Tap ISO 529 for through holes G (BSP) 1/8″-28

251050973

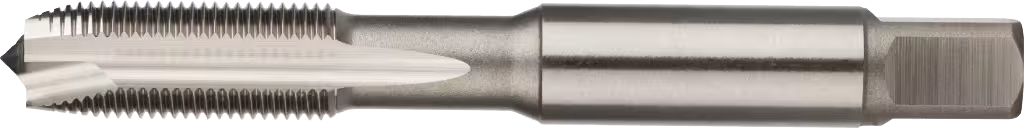

WebCategoryImage Phantom HSS Machine Tap ISO 529 for through holes G (BSP) 1/8″-28

Drawing Phantom HSS Machine Tap ISO 529 for through holes G (BSP) 1/8″-28

WebCategoryImage

€34.15

ISO 529, short series, Gun nosed for through holes, lead 3,5-5 chamfer

To machining materialsdownload legend

Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²

12-17

Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²

10-15

Very adequate for Nodular and malleable cast iron HB<260

3-6

Adequate for Aluminium and Aluminium alloys

15-20

VC: 14 M/min,

Spindle speed n: 458 RPM

choose thread diameter (d1) G 1/8
choose pitch-inch (tpi) 28 Threads per inch
choose total length (l1) 80 mm

98.5% available from stock
Real time stock level check
Ordered before 19:00 on working days, shipped today
You can reach us till 18:00

Specifications

Thread diameter (d1)

G 1/8

Pitch-Inch (TPI)

28 Threads per inch

Total length (l1)

80 mm

Flute length (l2)

24 mm

Shank Ø (d2)

10 mm

Square wide (sw)

8 mm

Pre-drilling diameter (Ø)

8.8 mm

Norm

ISO 529

Form

B

Tool material

HSS

Surface

Bright

Shank type

Straight shank with square

Cutting direction

Right

Hole type

for through holes

Coolant feed

No

Intrastat (HS) code

82074010

EAN code

8716563264958
