In stock | 24 pieces

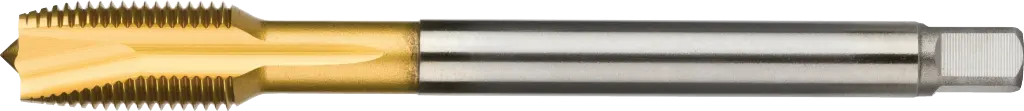

Phantom UNI HSS-E Machine Tap DIN 374 Metric Fine‚ TiN for through holes MF8x1

236210810
WebCategoryImage
Drawing
YouTubeId
YouTubeId
WebCategoryImage
€35.80

DIN 374, reduced shank, Gun nosed for through holes, lead 3,5-5 chamfer

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
15-20
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
10-20
Very adequate for Alloyed steel 850 - 1000 N/mm²
6-10
Very adequate for Stainless steel, ≤850 N/mm²
7-10
Adequate for Stainless steel, >850 N/mm²
4-8
Very adequate for Grey cast iron GG HB<260
10-15
Very adequate for Nodular and malleable cast iron HB<260
10-15
Very adequate for Aluminium and Aluminium alloys
25-35
Very adequate for Cast Aluminium Si 10 - 24%
10-20
Very adequate for Copper and copper alloys
15-35
Adequate for Nikkel and Cobalt alloys
2-8
Adequate for Titanium alloys
2-8
1520
VC: 17 M/min,
Spindle speed n: 677 RPM
  • choose thread diameter (d1) MF8
  • choose pitch (p) 1 mm
  • choose total length (l1) 90 mm
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Thread diameter (d1)
MF8
Pitch (P)
1 mm
Total length (l1)
90 mm
Flute length (l2)
20 mm
Shank Ø (d2)
6 mm
Square wide (sw)
4.9 mm
Pre-drilling diameter (Ø)
7 mm
Norm
DIN 374
Form
B
Tool material
HSS-E
Surface
TiN
Quality
UNI
Shank type
Straight shank with square
Cutting direction
Right
Hole type
for through holes
Coolant feed
No
Tolerance d1 (Tol. d1)
ISO 2 / 6H
Tolerance d2 (Tol. d2)
h9
Intrastat (HS) code
82074010
EAN code
8716563748823
