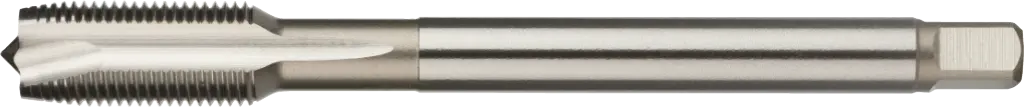

Phantom UNI HSS-E Machine Tap DIN 5156 for through holes G (BSP) 1/8″-28

250970973
WebCategoryImage Phantom UNI HSS-E Machine Tap DIN 5156 for through holes G (BSP) 1/8″-28
Drawing Phantom UNI HSS-E Machine Tap DIN 5156 for through holes G (BSP) 1/8″-28
YouTubeId Phantom UNI HSS-E Machine Tap DIN 5156 for through holes G (BSP) 1/8″-28
YouTubeId Phantom UNI HSS-E Machine Tap DIN 5156 for through holes G (BSP) 1/8″-28
WebCategoryImage
€33.90

DIN 5156, reduced shank, Gun nosed for through holes, lead 3,5-5 chamfer

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
15-20
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
10-20
Very adequate for Alloyed steel 850 - 1000 N/mm²
6-10
Very adequate for Stainless steel, ≤850 N/mm²
7-10
Adequate for Stainless steel, >850 N/mm²
4-8
Very adequate for Grey cast iron GG HB<260
10-15
Very adequate for Nodular and malleable cast iron HB<260
10-15
Very adequate for Aluminium and Aluminium alloys
25-35
Very adequate for Cast Aluminium Si 10 - 24%
10-20
Very adequate for Copper and copper alloys
15-35
Adequate for Nikkel and Cobalt alloys
2-8
Adequate for Titanium alloys
2-8
1520
VC: 17 M/min,
Spindle speed n: 556 RPM
