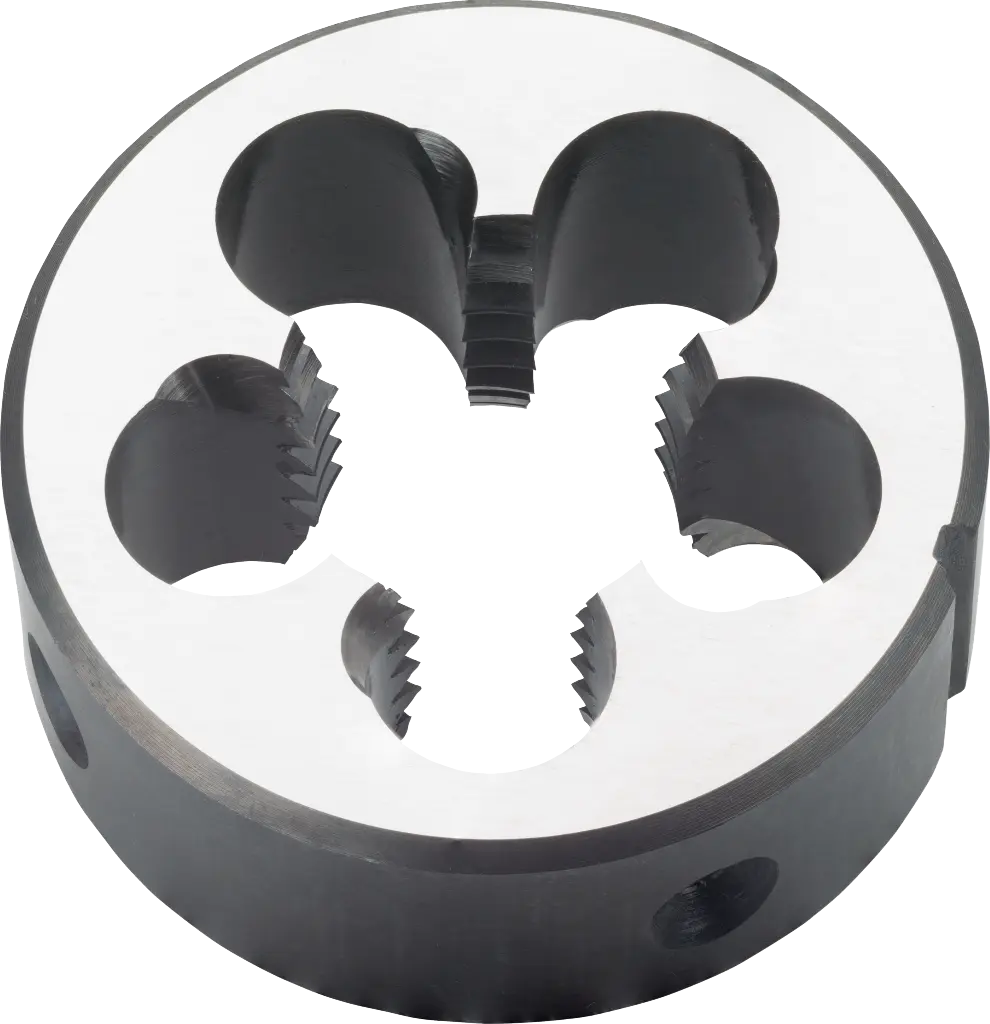

WebCategoryImage Phantom HSS-E PM Thread Die DIN EN 22568 Metric Coarse‚ gun nosed‚ pumiced‚ stainless steel M24
Drawing Phantom HSS-E PM Thread Die DIN EN 22568 Metric Coarse‚ gun nosed‚ pumiced‚ stainless steel M24
WebCategoryImage
Limited in stock | 2 pieces

Phantom HSS-E PM Thread Die DIN EN 22568 Metric Coarse‚ gun nosed‚ pumiced‚ stainless steel M24

271502400
WebCategoryImage Phantom HSS-E PM Thread Die DIN EN 22568 Metric Coarse‚ gun nosed‚ pumiced‚ stainless steel M24
Drawing Phantom HSS-E PM Thread Die DIN EN 22568 Metric Coarse‚ gun nosed‚ pumiced‚ stainless steel M24
WebCategoryImage
€174.15

DIN EN 22568, thread dies in ASP steel, pumiced version, from M3 Gun nosed, for hand and machine use, suitable for steels up to 1200 N/mm², high-grade steel, rust- and acid-proof steels

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
10-14
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
6-10
Very adequate for Alloyed steel 850 - 1000 N/mm²
5-8
Very adequate for Alloyed steel 1000 - 1400 N/mm²
5-8
Very adequate for Stainless steel, ≤850 N/mm²
4-6
Adequate for Stainless steel, >850 N/mm²
4-6
Very adequate for Cast Aluminium Si 10 - 24%
8-12
Adequate for Titanium alloys
5-8
1014
VC: 12 M/min,
Spindle speed n: 159 RPM
  • choose thread diameter (d1) M24
  • choose pitch (p) 3 mm
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Thread diameter (d1)
M24
Pitch (P)
3 mm
Tolerance d1 (Tol. d1)
6g
Outside Ø (d2)
55 mm
Die thickness (b1)
22 mm
Cutting direction
Right
Tool material
HSS-E PM
Surface
Bright
Norm
DIN EN 22568
Intrastat (HS) code
82074030
EAN code
8716563334927
