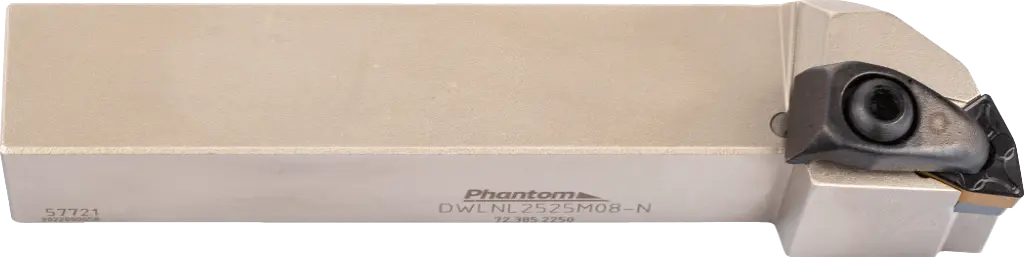

Phantom Cranked Knife Tool‚ 95° DWLNL 2525 M08

723852250
WebCategoryImage Phantom Cranked Knife Tool‚ 95° DWLNL 2525 M08
Drawing Phantom Cranked Knife Tool‚ 95° DWLNL 2525 M08
WebCategoryImage
€110.15

for carbide inserts WNMG.

The new nickel plated insert holders have sometimes different parts then the old blackened holders. We communicate this by putting a (B) Black or a (S) Silver behind the ordering code of the parts.

  • choose size (lxb) 0804
  • choose cutting direction Left
  • choose height (h1) 25 mm
  • choose type DWLNL 2525 M08
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Height (h1)
25 mm
Shank wide (b1)
25 mm
Length (l2)
34 mm
Total length (l1)
150 mm
Width (b2)
32 mm
Cutting direction
Left
Clamping type
D
Coolant feed
No
Internal/external
external
Type
DWLNL 2525 M08
Clamping Bolt (1 incl.)
73.998.0450(B)/73.998.0451(S)
Bearing Plate (2 incl.)
73.998.0485(B)/73.998.0486(S)
Key (3 incl.)
T15IP(B)/SW4(S)
Pressplate (4 incl.)
73.998.0497(B)/73.998.0032(S)
Insert type (5 excl.)
WN.. 0804..
Intrastat (HS) code
82078011
EAN code
8716563682028
